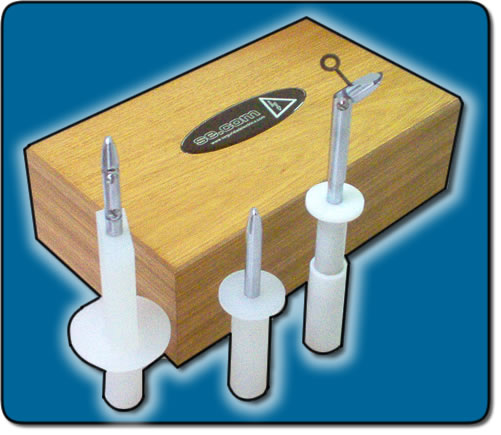

Articulated Test Finger - Rigid Test Finger - Test Finger Nail / IEC 61032 + IEC 60335 + IRAM 4220

The Articulated Test Finger is a precision test probe made according to Figure 2 (Fig. 2) of the IEC 61032 (Test probe B) and is used to simulate a human finger. It is also used by the standards of CSA, IRAM, UL. IEC 60335, IRAM 4220-1 and in most of the rules involved in the verification of accessibility to live parts.

Rigid Test Finger is a precision probe made according to Figure 7 (Fig. 7) of the IEC 61032 (Test probe 11) and is used to simulate a human finger. It is also used by the standards of CSA, IRAM, UL.

Test Finger Nail is a test device designed to simulate a human finger nail. Test Finger Nail is designed and manufactured according to Figure 7 of IEC 60335.

Articulated Test Finger (Figure 2 / Test Probe B / IEC 61032)
Details

Rígid Test Finger (Figure 7 / Test Probe 11 / IEC 61032)

Test Finger Nail (Figure 7 / IEC 60335-1)
